SKU:15823269
How to measure the length of the required belt: Wrap the rope around the two pulleysMake a markPlace the marked rope on a flat surface and use a tape measure to measure the distance between the two marks, which is the inner circumference of the belt To accurately measure the length of the v-belt, use a belt measuring tool or a soft ruler, not a steel ruler.The width and thickness of the belt should also be measured to confirm the type of belt. Installation: First, loosen the tensioning device, then press the v-belt into the pulley groove by hand, and finally tighten it again. Notice: Pay attention to the wear of the belt groove of the v-belt pulley.Check whether the centerline of the two pulley shafts is parallel, whether the corresponding pulley slots are aligned, and whether there is any skewing phenomenon.When one v-belt is badly worn and cannot be used, replace all the v-belts at the same time, with the same type and equal length, so that each belt has the same tension. Maintenance: Regularly check the v-belt tension, after adjustment still can not meet the specified requirements, must be replaced with a new v-belt.In use, the operating temperature of the v-belt should not exceed 140°F, do not apply belt grease casually.Various types of v-belt, should not be coated with rosin or sticky substances, but also to prevent v-belt from oil, butter and gasoline, otherwise, it will corrode the v-belt, and shorten the service life.V-belt should be stored at a relatively low temperature, with no direct sunlight and no oil and corrosive fumes place. Application Lawn Care Equipment Repair lawn equipment, snow removal machine General Purpose Repair band saw, box fan, drilling machine, trimmer Automotive Repair Replace the automotive belt Click Here Click Here Click Here Click Here Click Here Click Here Buying Options Buying Options Buying Options Buying Options Buying Options Buying Options Customer Reviews 4.6 out of 5 stars 67 4.5 out of 5 stars 232 4.4 out of 5 stars 280 4.2 out of 5 stars 109 4.6 out of 5 stars 22 4.6 out of 5 stars 18 Type B A M K O SPZ Width 16mm 13mm 10mm 8mm 10mm 10mm Thickness 11mm 9mm 6mm 6mm 6mm 9mm

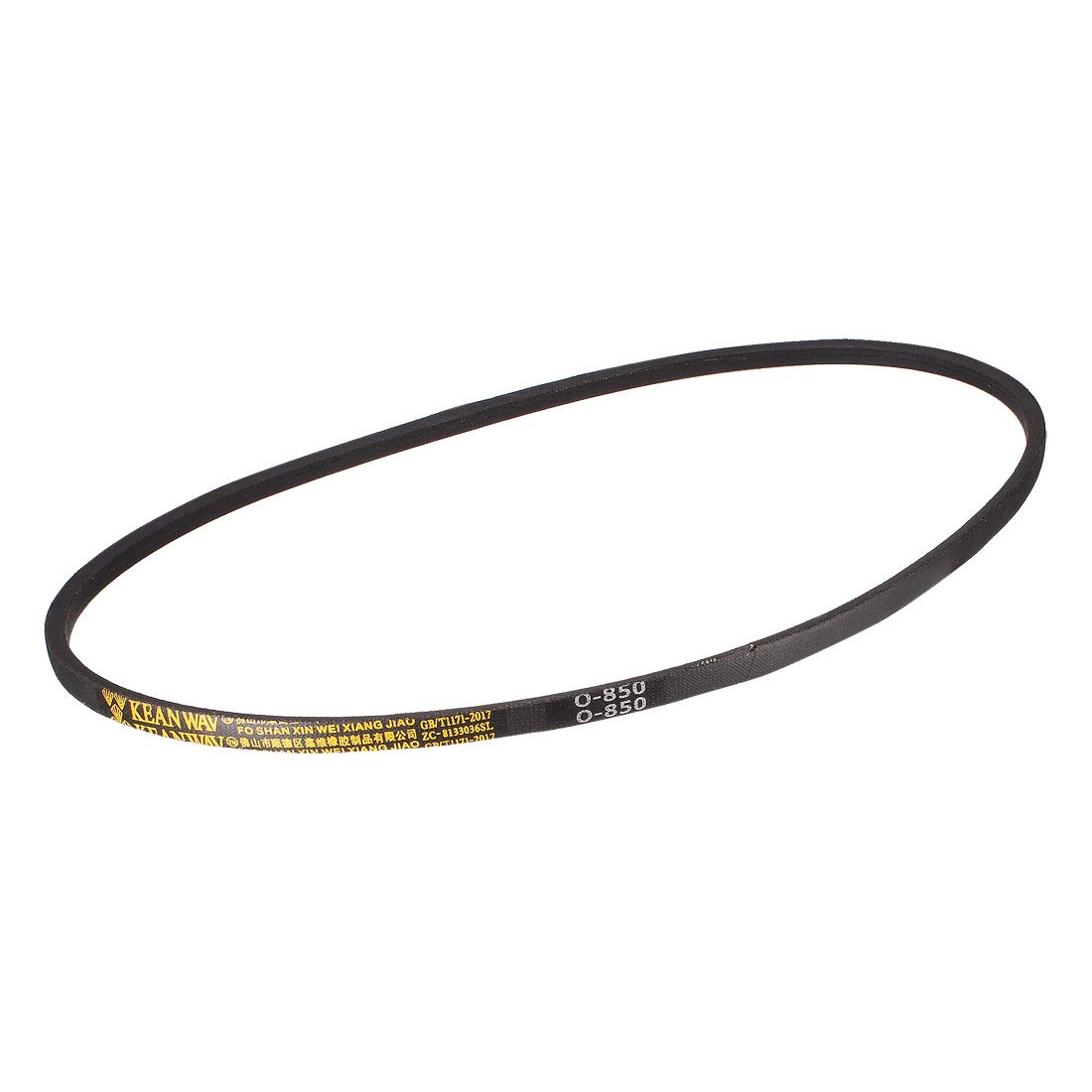

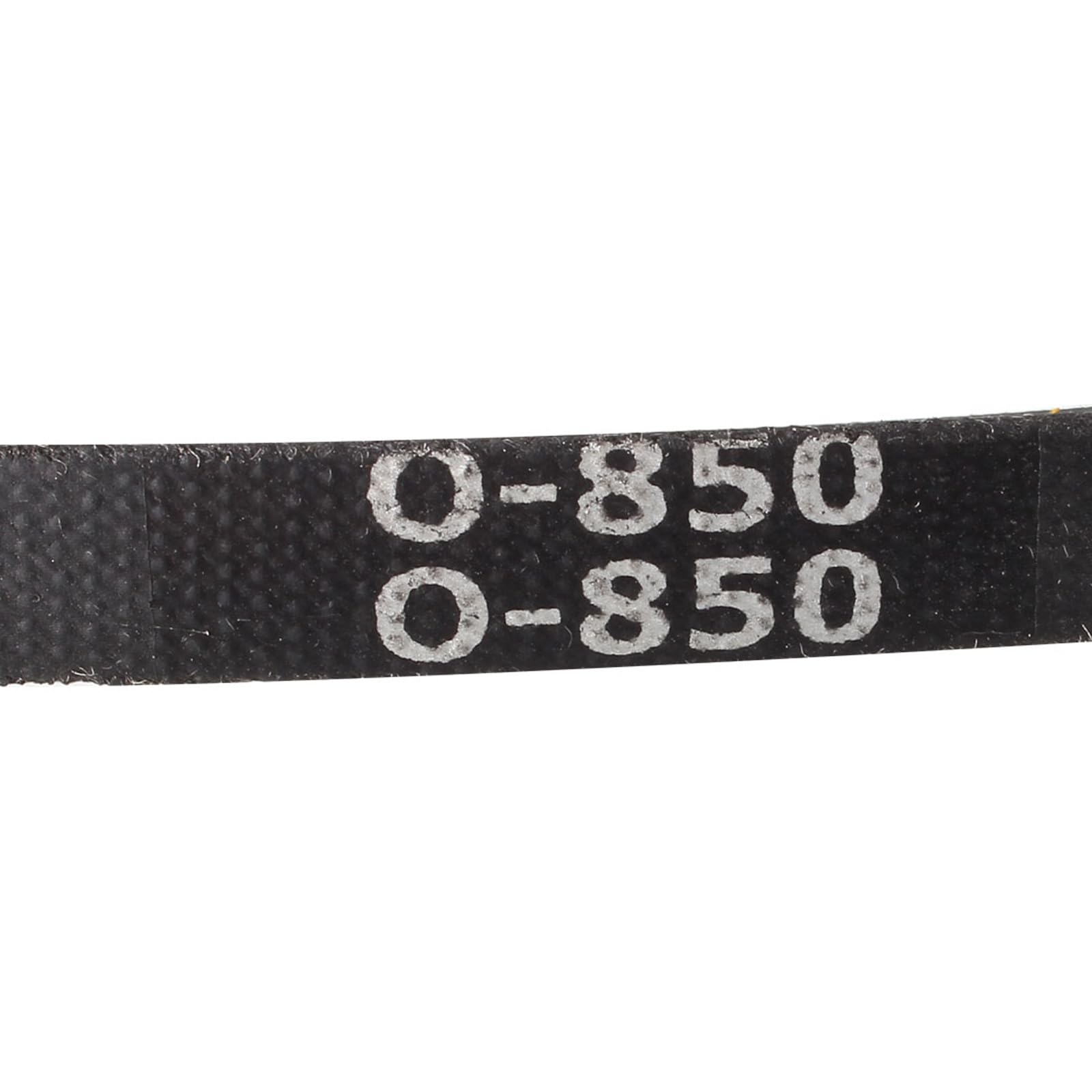

Size Model O-850; Inner Girth 850 mm; Top Width 10mm; Thickness 6mm; Angle 40 degree
Material It is made of neoprene rubber for resistance to oils, water, and some solvents.
Function To link two or more rotating shafts to transmit power in a drive system. Even load distribution on belt drives and good wear resistance.

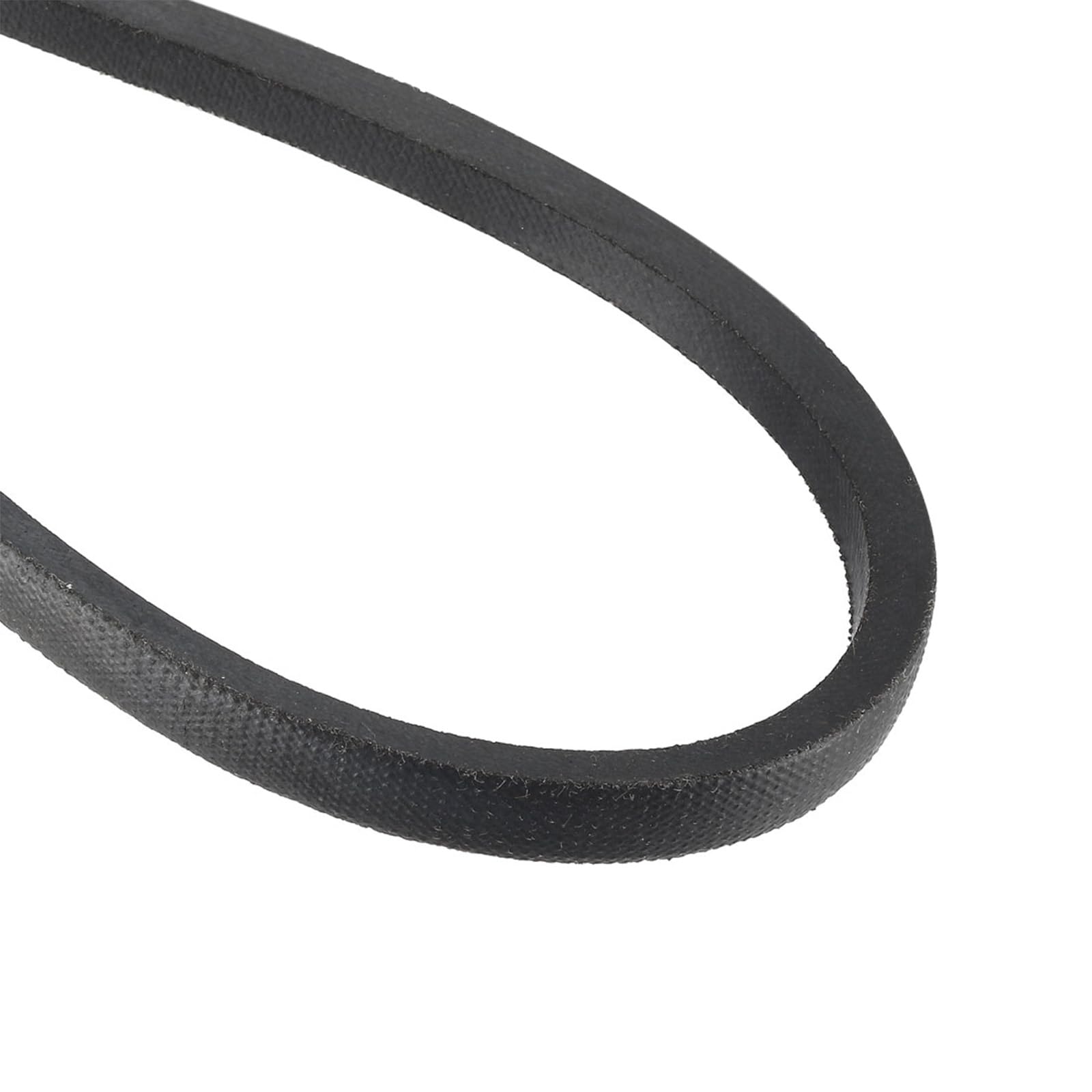

Feature The trapezoidal shape of the belts cross section wedges into the groove of a similarly shaped sheave or pulley to provide traction and alignment.

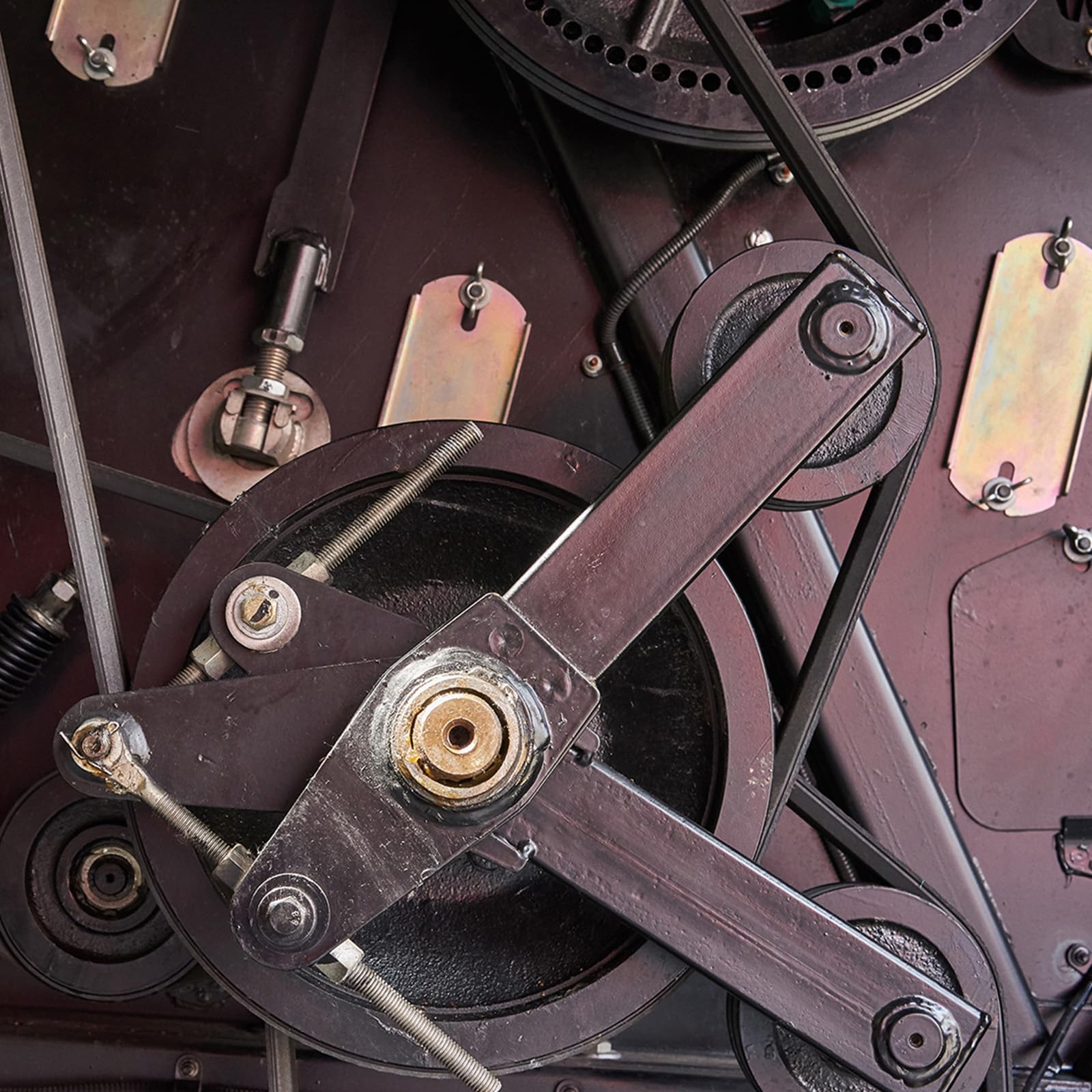

Applications Used for drive systems in the automotive, agricultural, textile, printing, mining, and office equipment industries, ect.
