SKU:39925122
NInE-ROnG has focused on product development and manufacturing in the fields of hour meter, battery indicator, multi-function meter，service for the garden machinery industry, outdoor power vehicle equipment, transportation vehicles.In addition, we are also committed to creating simple and practical day timers, night light, hygrometers and other products to add fun and security to our life. Others Serrated design on the side of the product holds the mounting bracket better. The mounting bracket is movable and can be removed from the product. Product Function Mechanical Hour Meter Two sizes available: HM002 AC 110-250V or HM002 DC 6-80V. The total running time of the display engine will be displayed and remain visible. The timing mode is increment counting, the initial value is 0, and the maximum value is 99999.9H. TOT is can not reset.If it exceeds the max value, it will be cleared automatically. Power Connection Installation&Application Performance Test Yellow resistance testing It can keep good working condition from simulative strong UV ray lightening.It also pass another considerate test for each functions sections and attached accessories. Drop test Has good shock resistance and protection. High & Low temperature test It works well at temperatures from -40 °C to +70 °C. Specifications Product NR-HM002 Specification HM002 AC 110-250V or HM002 DC 6-80V selectable Power supply type Externally powered Timing range 0-99999.9H Timing accuracy 0.1H Display size 29*5mm(1.14*0.19in) Product size 55*31.7*71.7mm(2.16*1.24* 2.82in) Housing material ABS Product weight 46g
Operating Voltage ---- Works on AC 110V-250V Battery Powered Equipment,such as fork lifts,golf carts,floor care equipment,compressor,motorhome,generator and any other battery powered equipment.

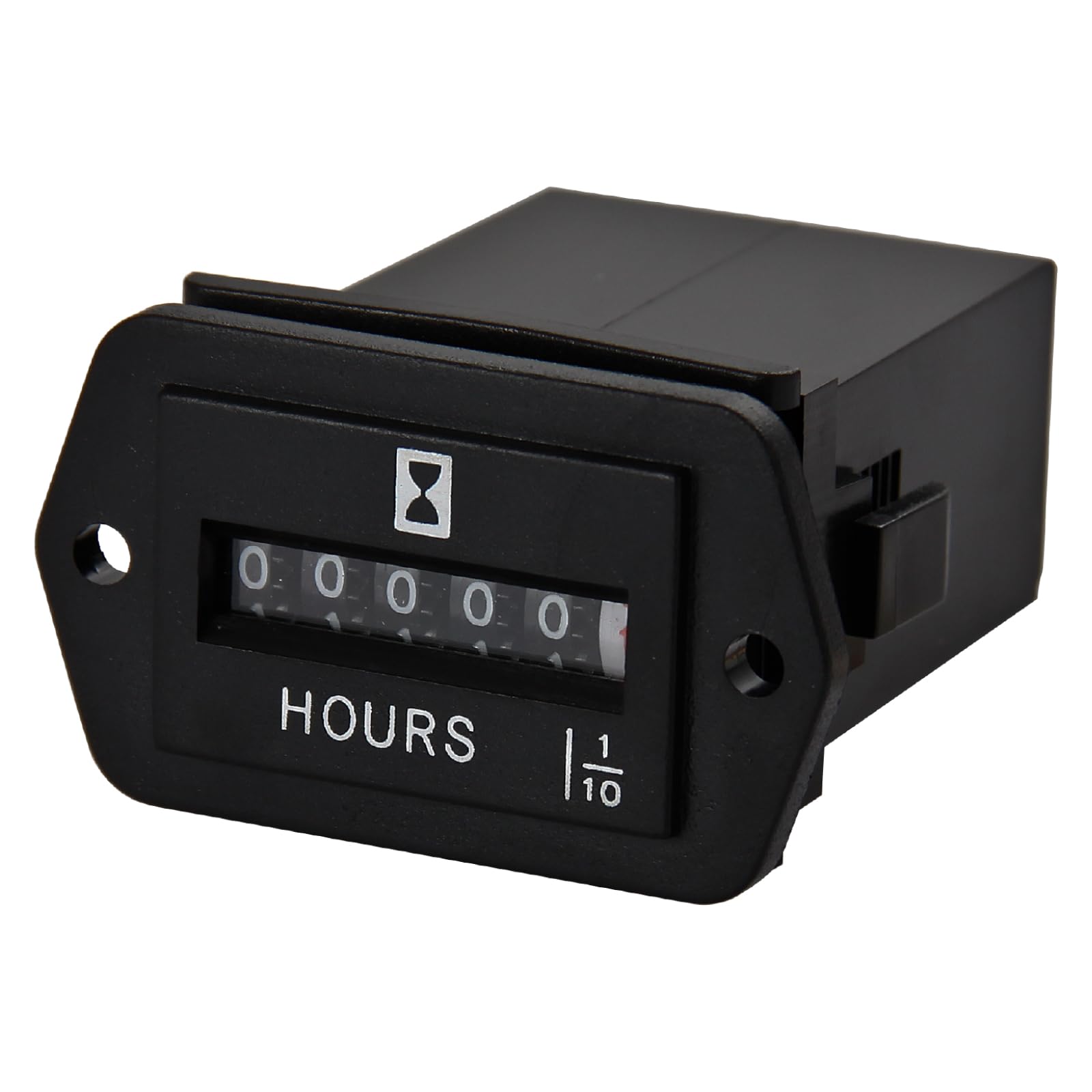

Hour Meter ---- Mechanical Rectangular hour meter, no battery, long service life.The hour meter starts timing when the power is turned on.

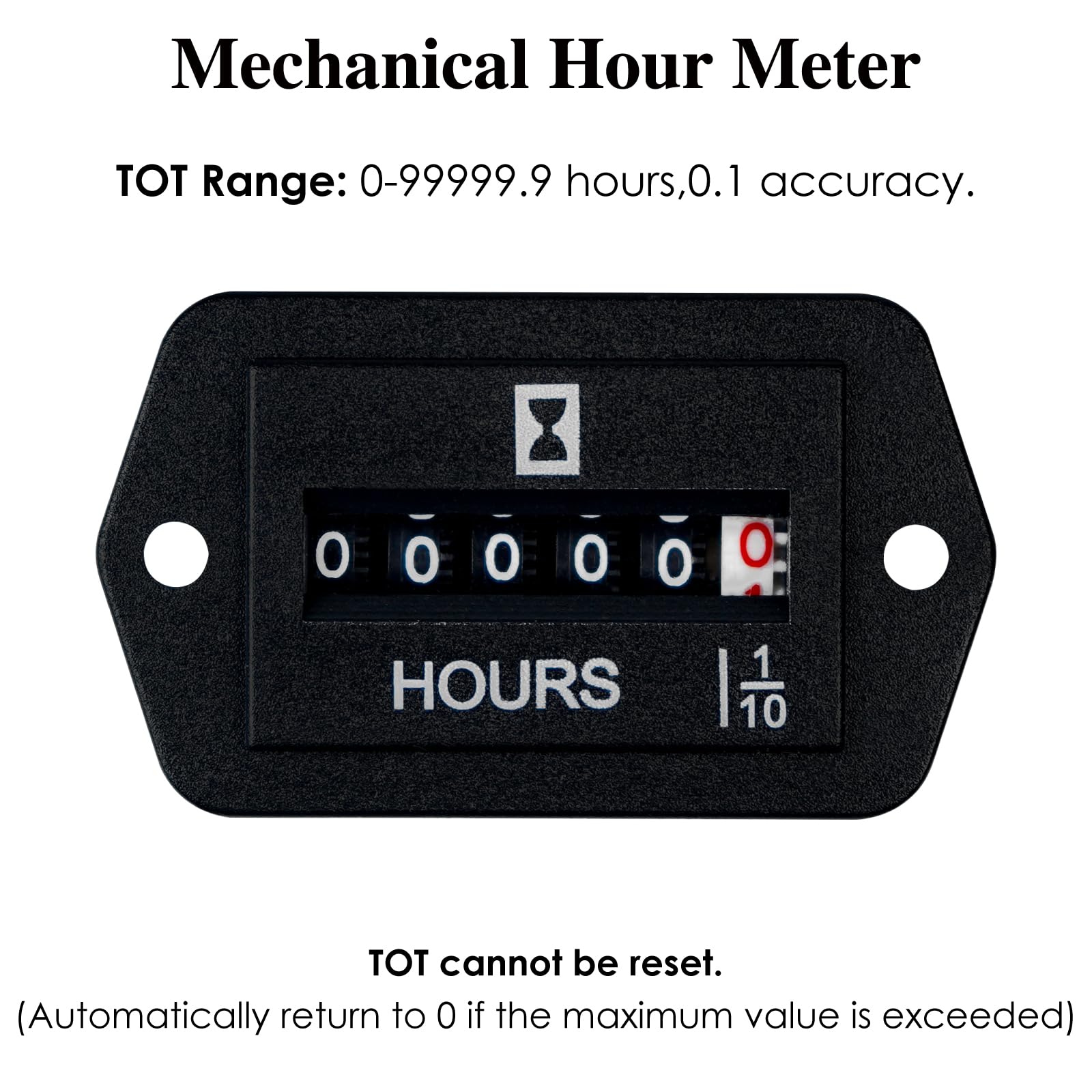

Timing Range ---- Maximum value up to 99999.9 hours,0.1 accuracy.It's not resettable,but automatic recycle to zero exceeds the max value.

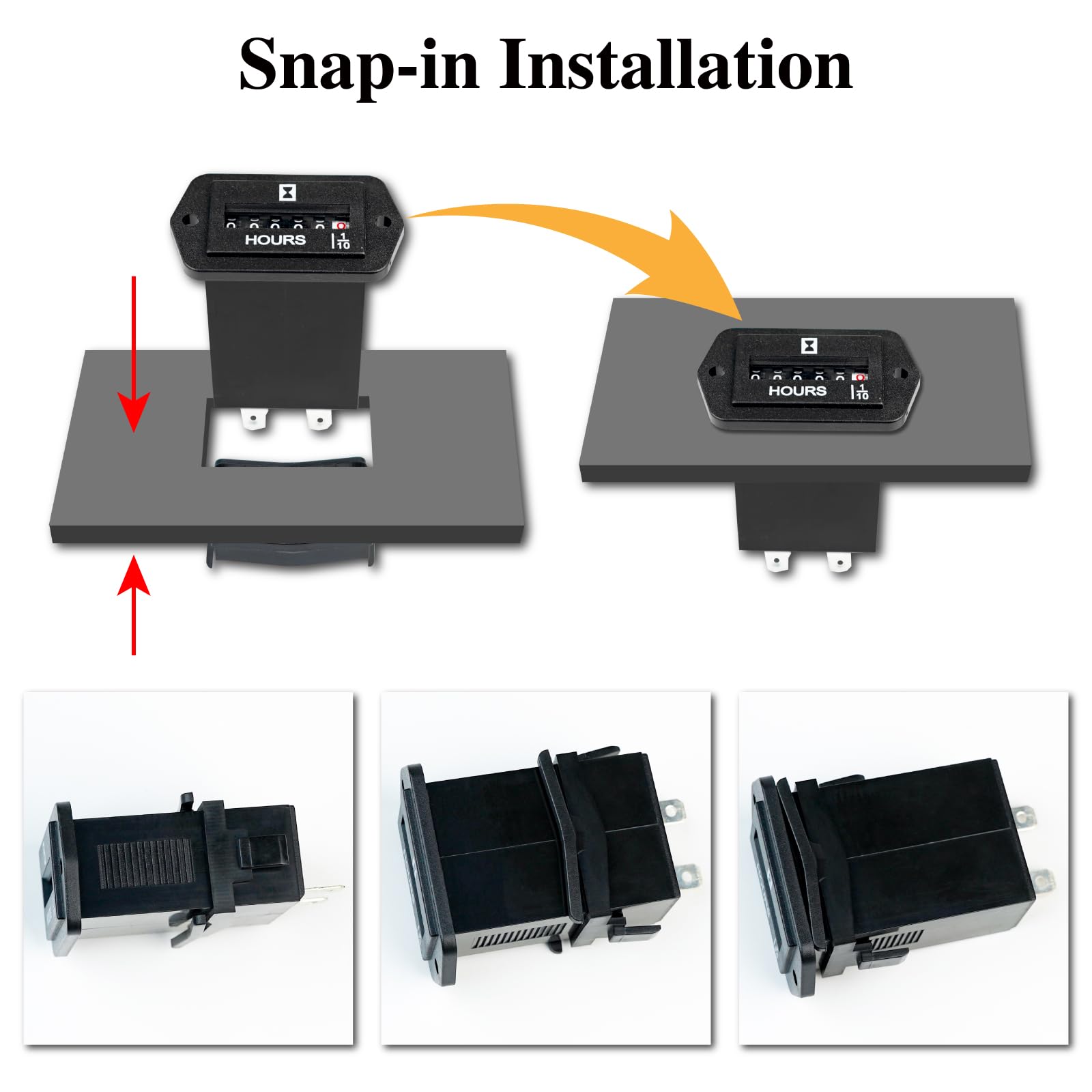

Installation ---- Snap in installation,comes with mounting bracket for quick and easy installation.Mounting hole size 37.5*24.5mm.
Others ---- Product size 55*31.7*71.7mm(2.16*1.24* 2.82in);Display window size 29*5mm(1.14*0.19in);Housing material ABS;CE certification.
I have pretty much just installed this meter, so time will tell if it still tells time as time goes....ah enough puns....I mainly posted this to show how to remove the locking ring from the meter body. Get some needle nose pliers and pull the lock ring away from the meter body at the sides to get it over the notches, then it will come off.Oh yeah, I also included a pic of the homemade, wrinkle painted, bracket I made to mount this (wired in parallel) to my air compressor to keep track of usage for maintenance concerns.
